MSP 106

The universal platform for sheets of 300 up to 1060 mm width

The MABEG MSP 106 is the universal platform for sheets ranging in width from 300 mm to 1,060 mm. It has a modular layout with countless configuration options for sheet alignment, precision tables, ejectors for bad sheets and sheet stackers. Every line is individually configured according to the requirements.

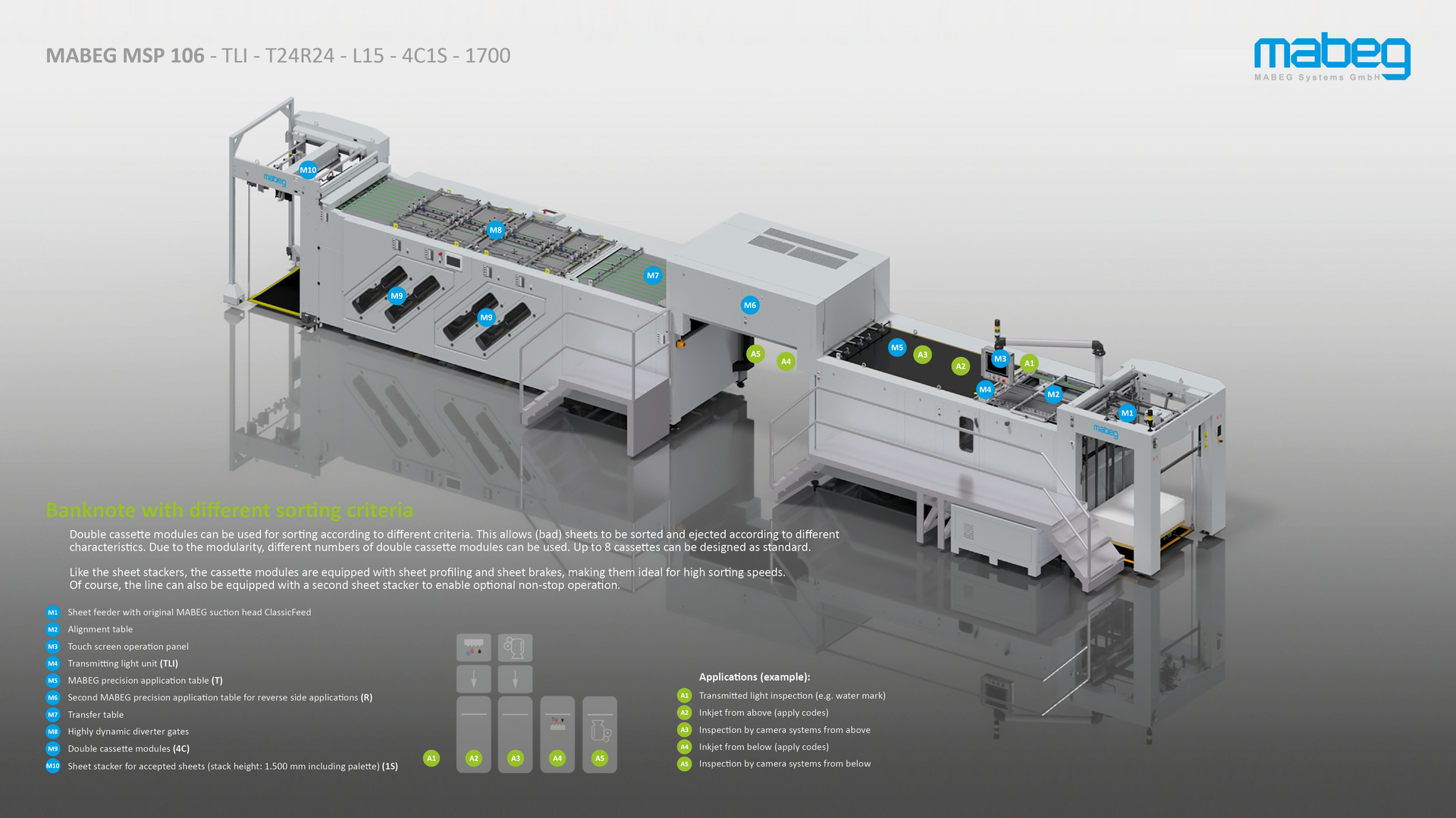

Alongside automation and non-stop functions, it is also possible to integrate multiple precision tables for diverse applications and multiple sheet stackers for sorting. High-resolution inspection and sheet coding tasks can thus be freely combined: for example for inspection tasks in different wavelength ranges on the top of the sheet, on the bottom of the sheet and with transmitted light combined with ink-jet coding.

The precision application table forms the heart of the MABEG MSP 106. It has been developed and optimised for perfect sheet transport. The result is an application table that boasts unique precision and is particularly well suited for all inspection tasks, but also for sheet coding, printing with ink-jet or for fingerprint technologies.

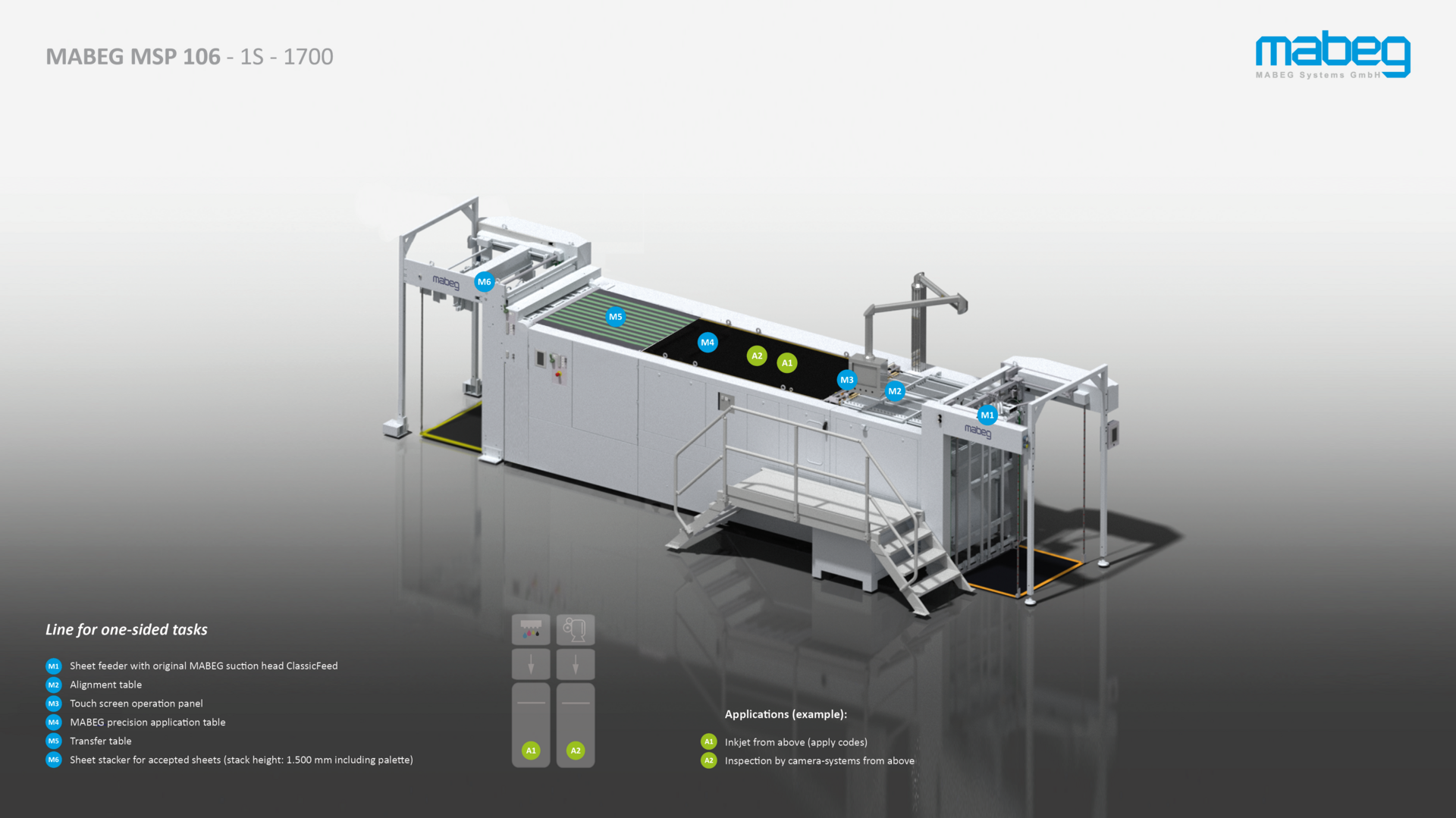

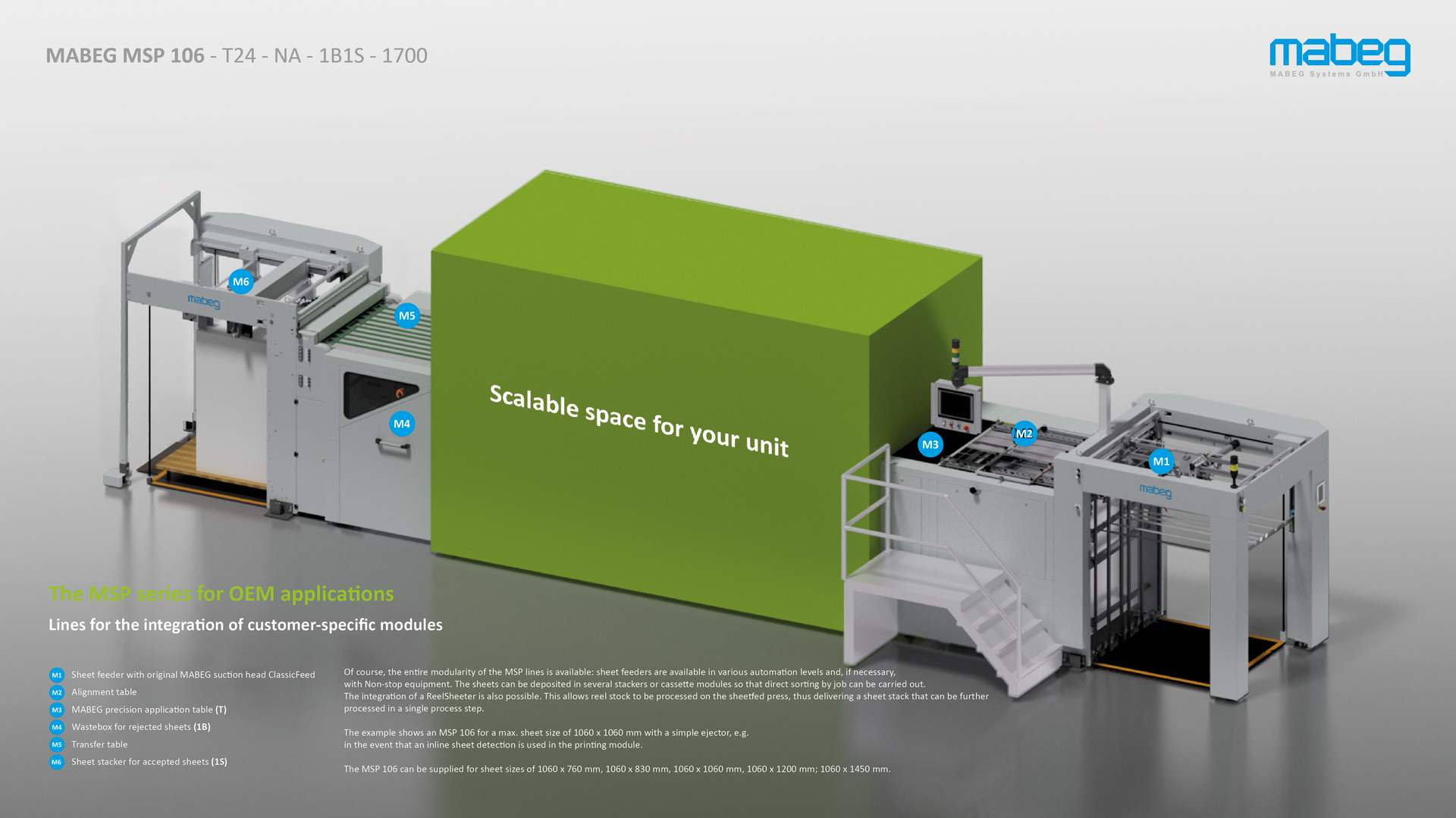

Typical configuration examples and their applications:

More Information

Brief description of the MSP 106

Format
Minimum sheet size (W x L): 300 x 300 mm²
Maximum sheet size (W x L): 1.060 x 830 mm²
With format-option 1 (FO1): 1.060 x 1.200 mm²
With format-option 2 (FO2): 1.060 x 1.450 mm²

Material

Paper and paperboard 60 – 400 g/m²
Optional: 40 – 2000 g/m² Available on request after technical clarification
Optional materials: Plastics and other materials based on the customer's specification

Stack weight
Sheet feeder                                             1,500 kg max.
Sheet stacker                                            1,500 kg max.

Sheet transport height
for MSP 106 – xxx – 1700: 1.700 mm
for MSP 106 – xxx – 1100: 1.100 mm

Stack heights
Including the pallet or stacking table in each case

For MSP 106 – xxx – 1700

  • Sheet feeder: 1500 mm
  • Main sheet stacker: 1500 mm
  • Additional sheet stacker for rejected material: 1100 mm

For MSP 106 – xxx – 1100

  • Sheet feeder: 1500 mm
  • Main sheet stacker: 1500 mm
  • Additional sheet stacker for rejected material: Not available

Performance

max. 12,000 sheets/h or 200 m (max. mechanical performance)
with waste box max. 90 m/min

The production speed depends upon the application, the substrate (type, paper weight, material thickness), the sheet size and the ambient conditions.

For information purposes only. We expressly reserve the right to make technical changes, even without prior notice.

Application examples

Application example for sheet coding on the basis of the MSP 106 – 1B1S – 1100

The configuration example shows an MSP 106 – 1B1S – 1100 for single-sided sheet coding with inspection and an option for ejecting bad sheets into a waste box. A typical application is the application of codes with immediate subsequent verification via camera systems and the ejection of sheets with defective codes. [Read more]

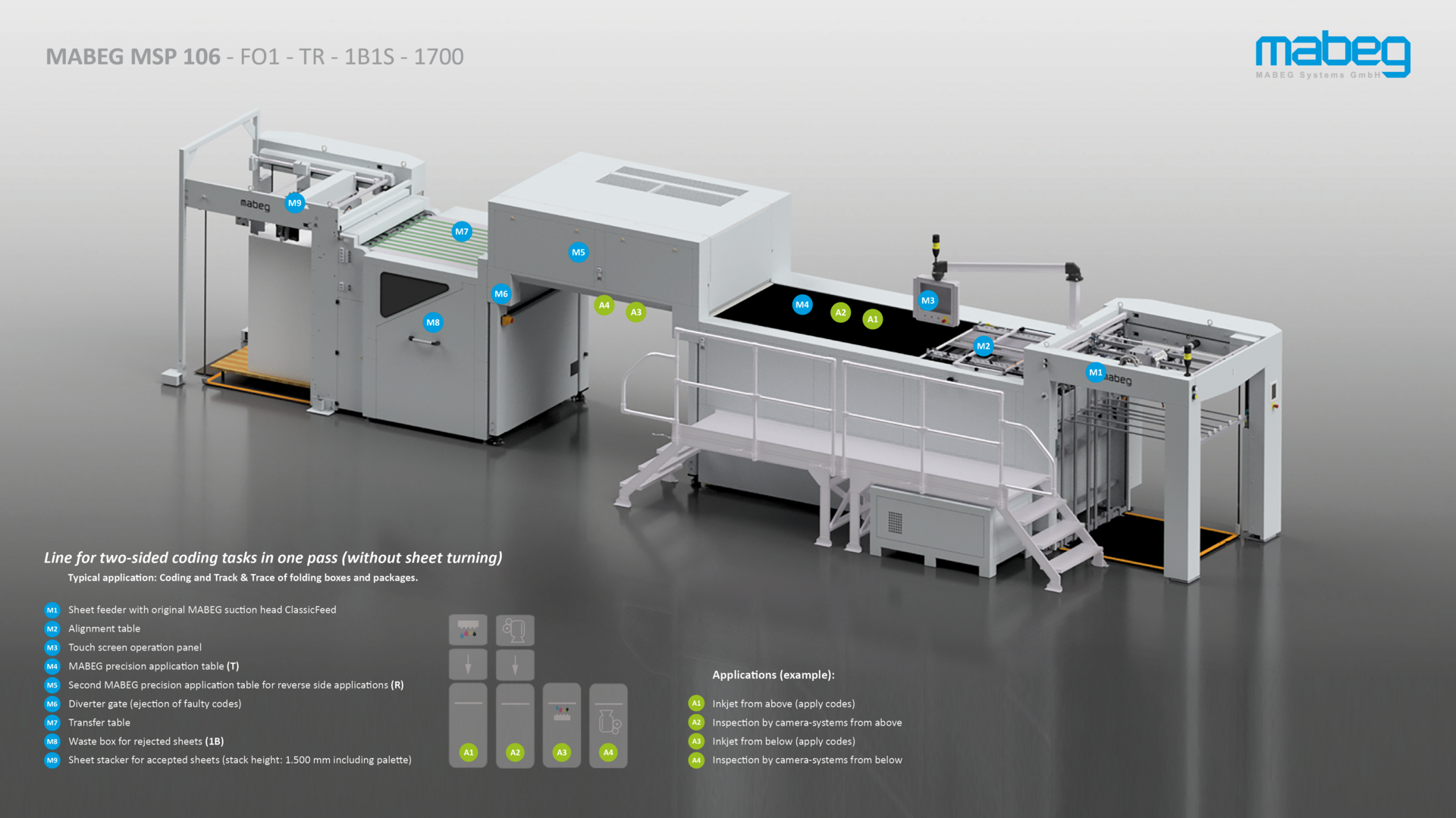

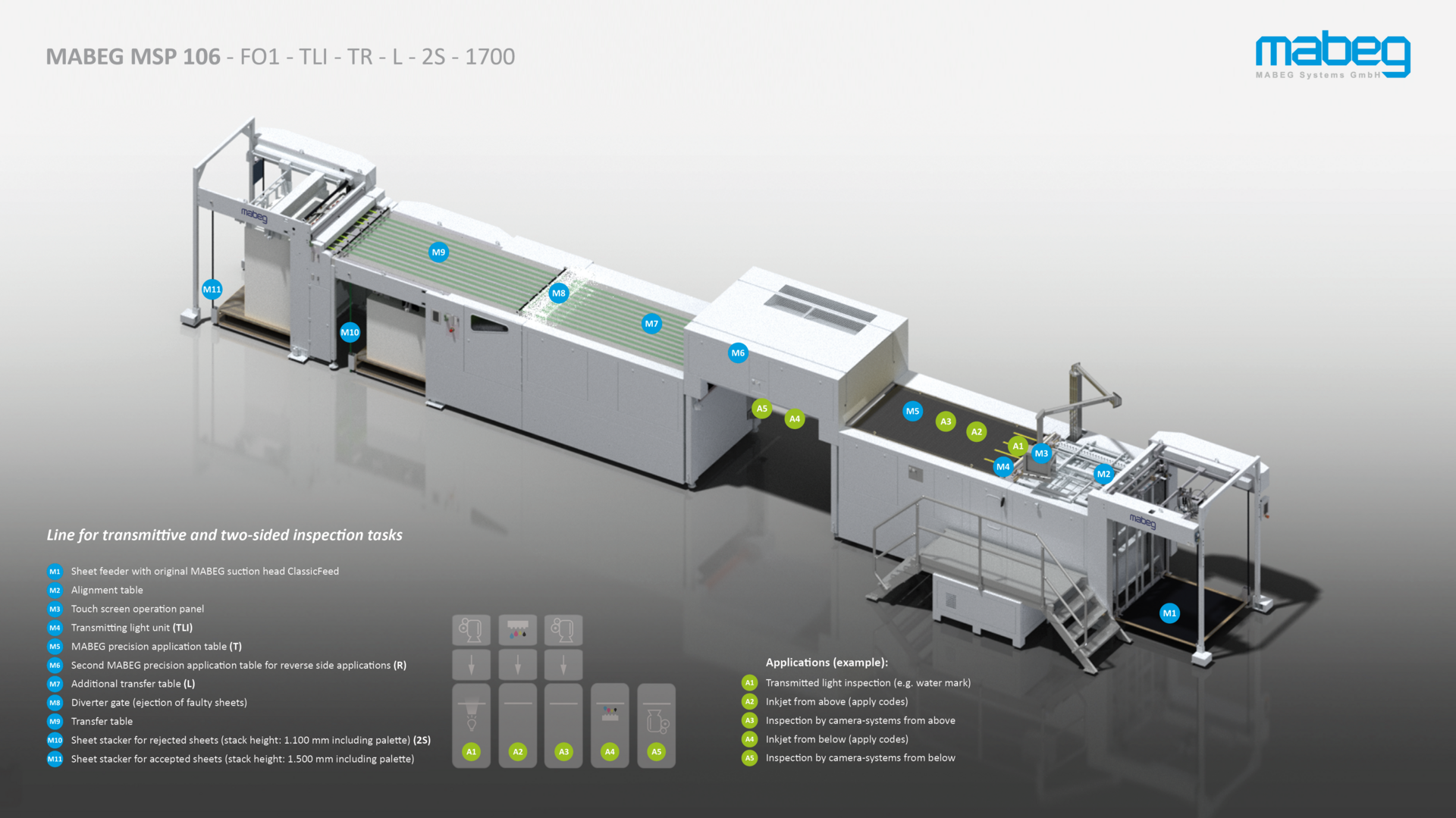

Application example for track-and-trace and sheet coding on the basis of the MSP 106 – FO1 – TR - 1B1S – 1700

This configuration is often used in the area of luxury packaging. In just one sheet pass without sheet turning, codes can be printed on the top and bottom of the sheet. The M5 module is the so-called overhead table. [Read more]

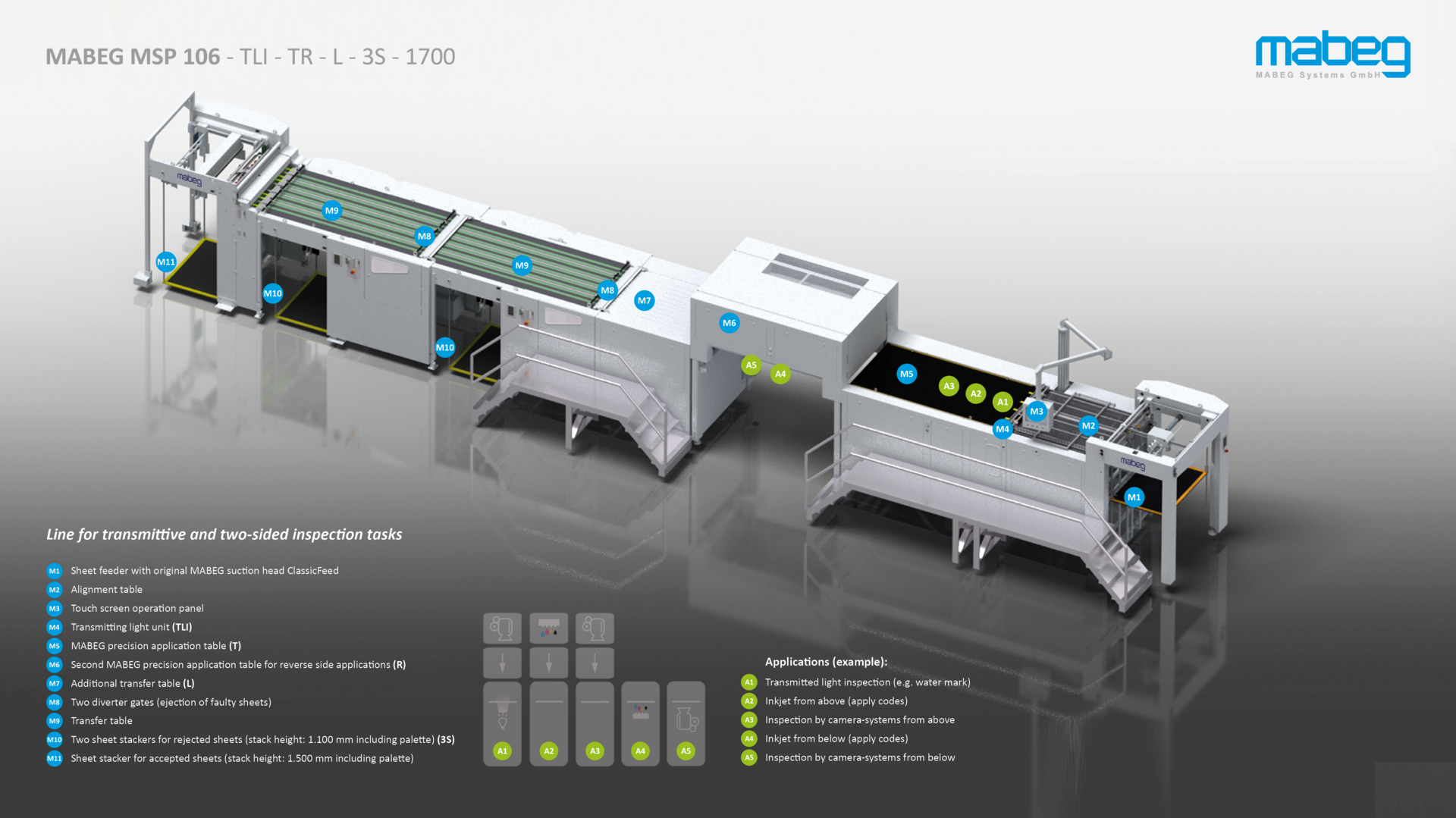

Application example: sorting station for printed banknote sheets, optionally with cross cutter

The tasks for a sorting station for banknote sheets are diverse and complex. This configuration shows a realised example of an MSP with a sheet feeder with manual non-stop and inspection options for transmitted-light inspection and inspection of the sheet top and sheet bottom, and it also features 3 sheet stackers.[Read more]

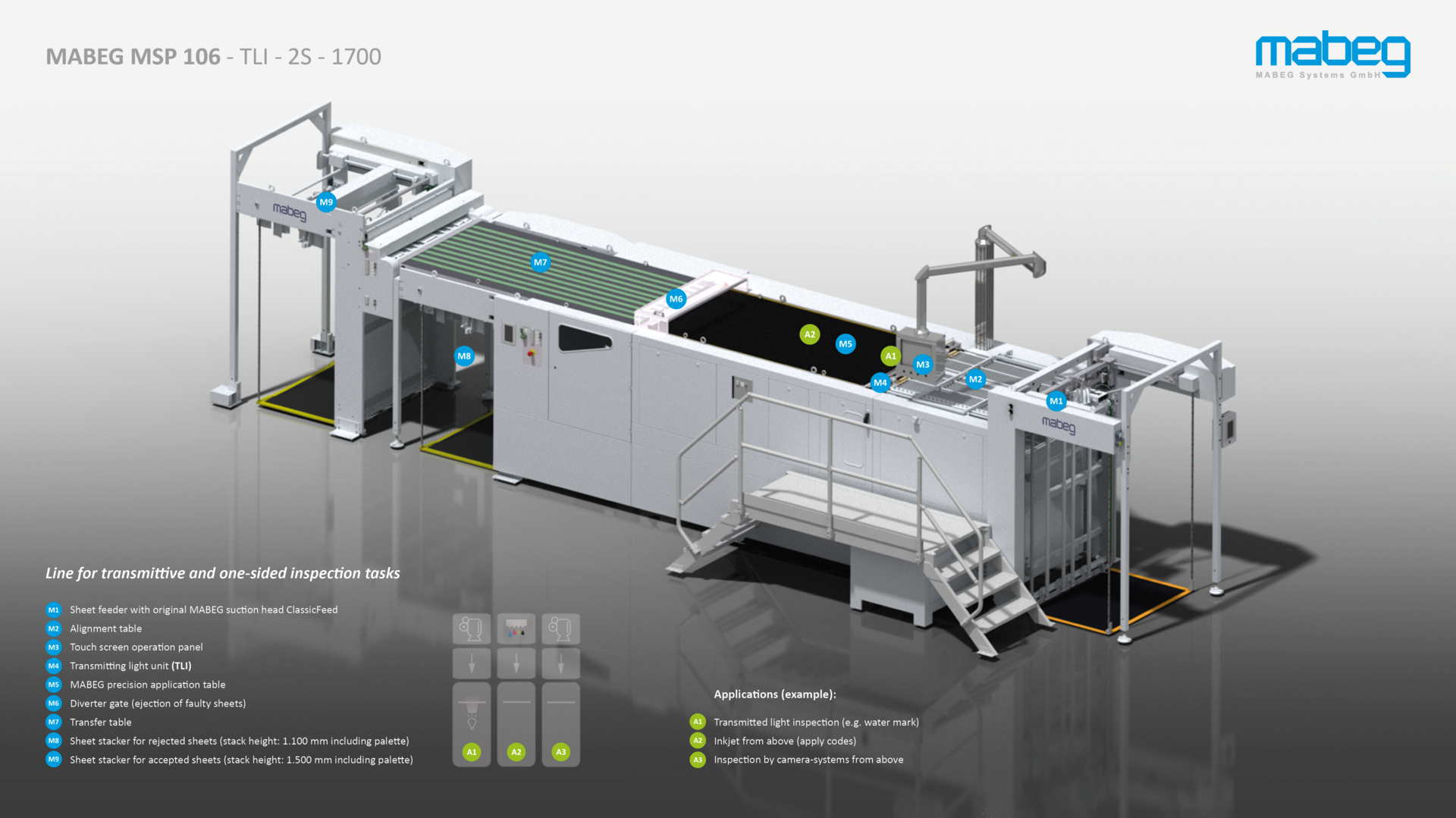

Application example: sorting station for paper mills, optionally with cross cutter

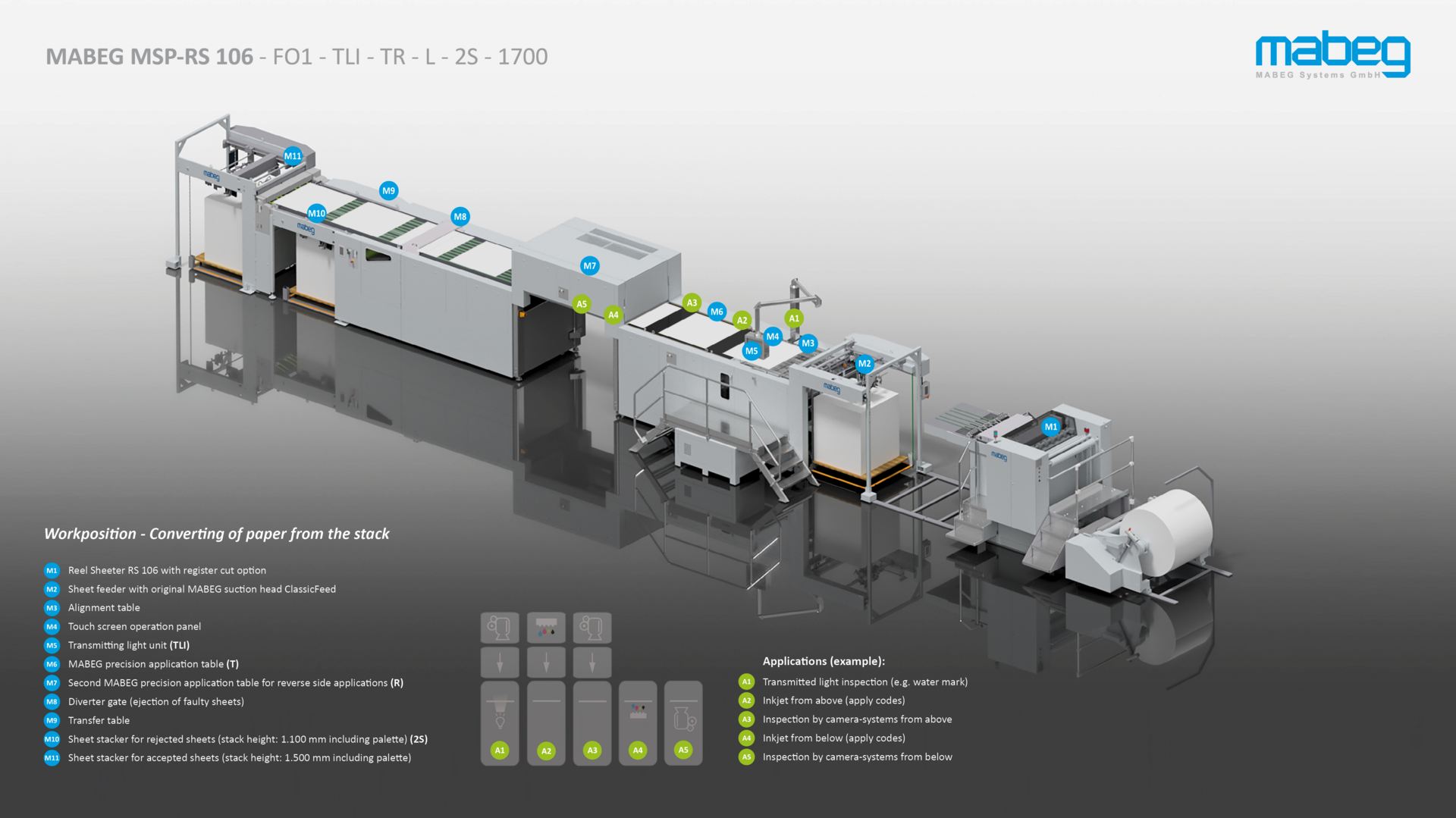

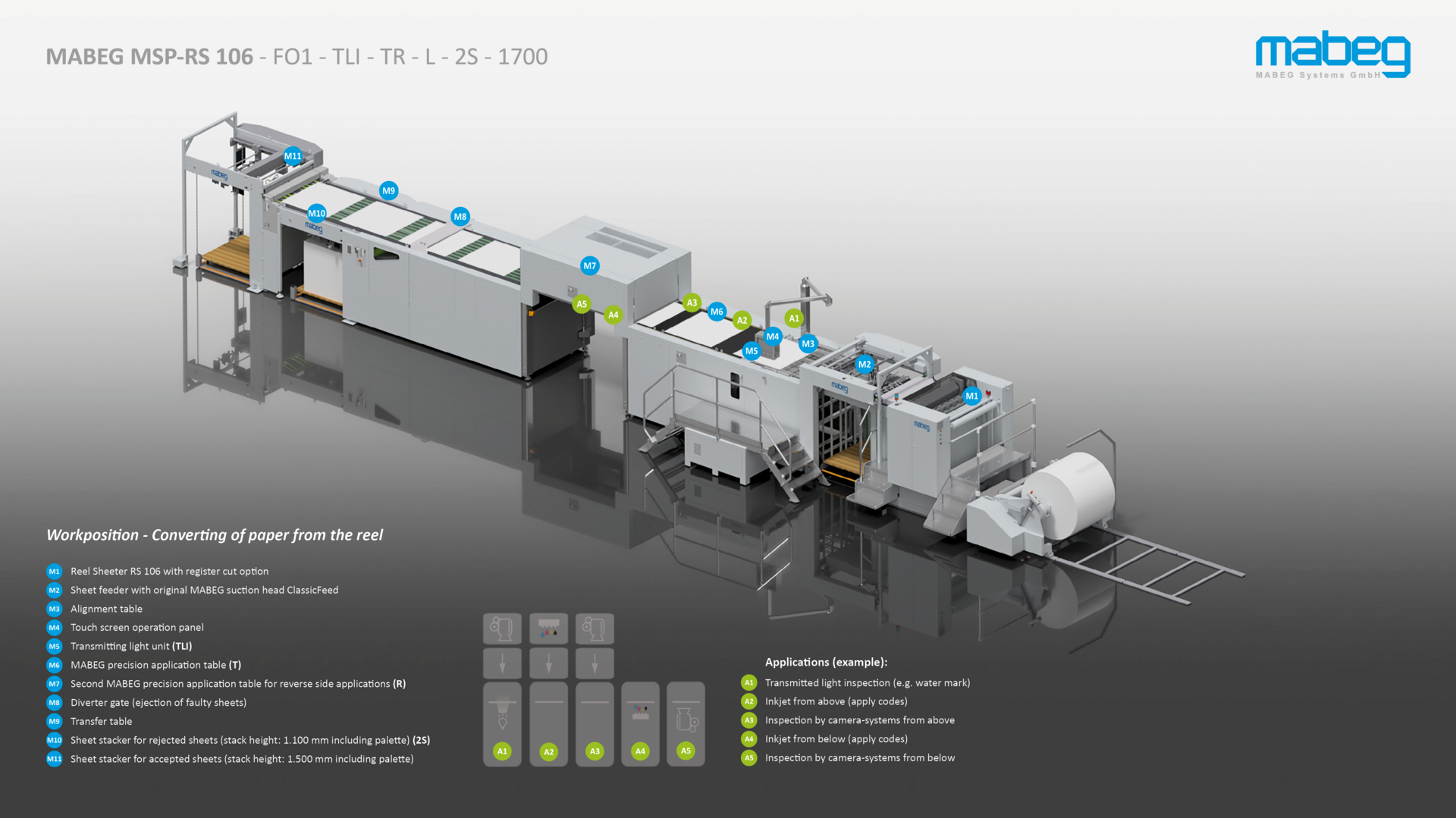

This MSP 106 has been specially configured and realised for post-sorting in a paper mill. The MSP 106 enables the inspection of dog ears and watermarks with the so-called TLI transmitted-light inspection module. Afterwards, the top and bottom of the sheet are inspected without turning the sheet – all in a single pass of the sheet. [Read more]
